฿2,900.00 – ฿4,500.00

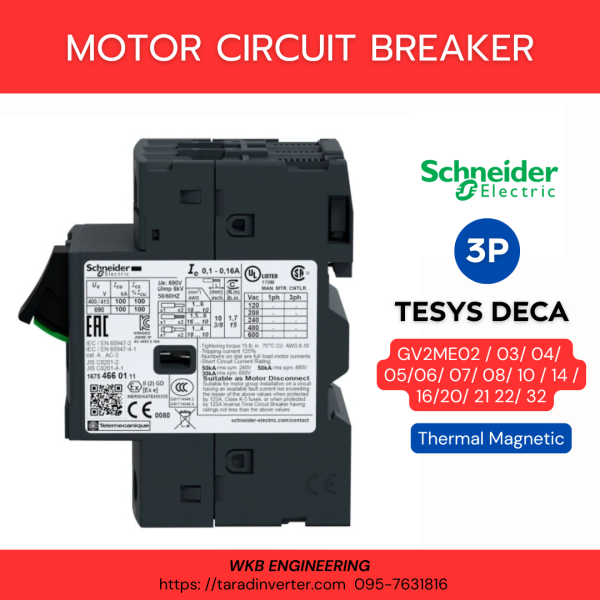

Schneider : Motor circuit breaker

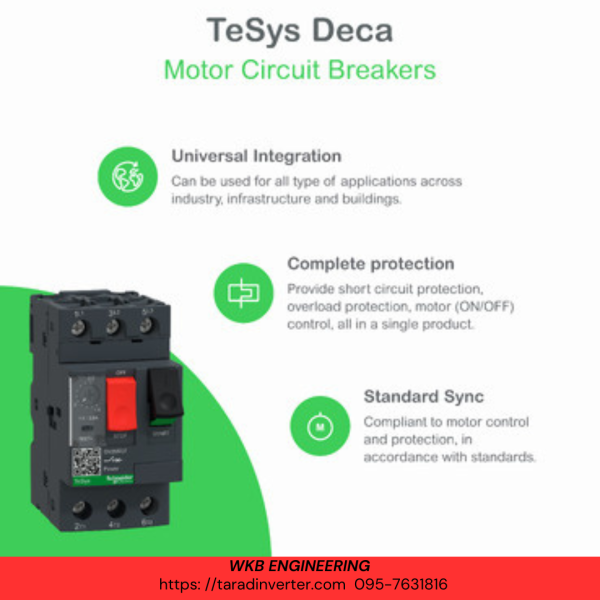

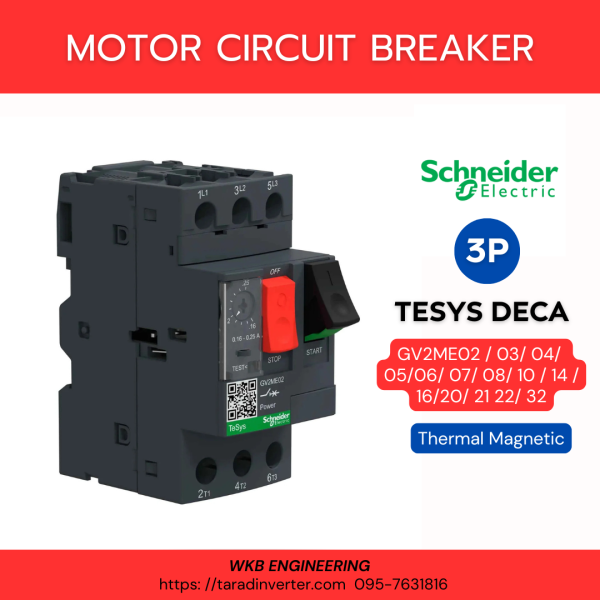

Motor circuit breaker รุ่น GV2ME TeSys Deca, 3P, thermal magnetic, screw clamp terminals, button control

Clear
SKU: N/A Categories: , , ,

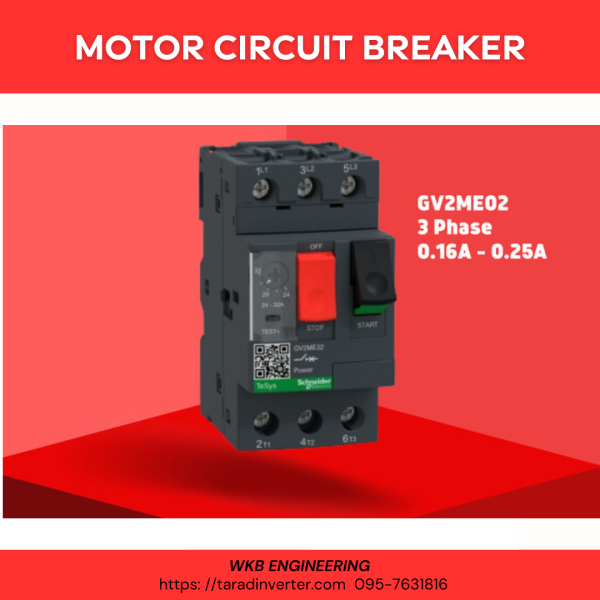

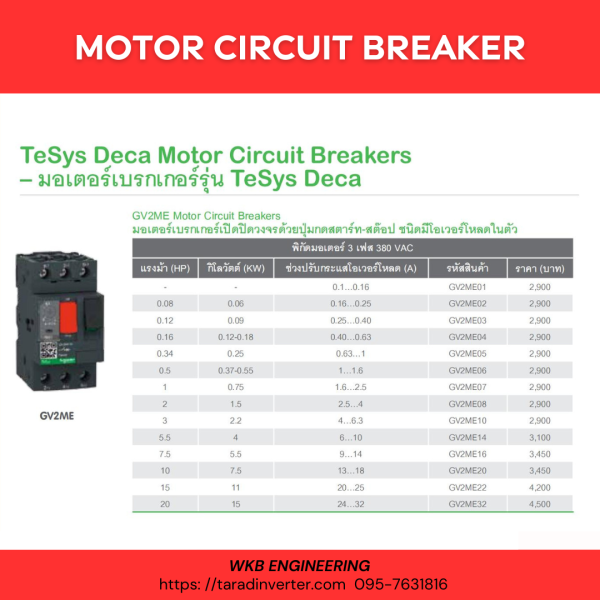

1.GV2ME02 : Motor circuit breaker, TeSys Deca, 3P, 0.16 to 0.25A, thermal magnetic, screw clamp terminals, button control = 2,900

  • Complementary
  • Poles description: 3P
  • Network type: AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW : 0.06 kW 400/415 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2

2.GV2ME03 : Motor circuit breaker, TeSys Deca, 3P, 0.25 to 0.4A, thermal magnetic, screw clamp terminals, button control = 2900

  • Complementary
  • Poles description : 3P
  • Network type :AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 0.12 kW 400/415 V AC 50/60 Hz
  • 0.18 kW 400/415 V AC 50/60 Hz
  • 0.37 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2

3.GV2ME04 : Motor circuit breaker, TeSys Deca, 3P, 0.4 to 0.63A, thermal magnetic, screw clamp terminals, button control = 2900

  • Complementary
  • Poles description :3P
  • Network type :AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 0.12 kW 400/415 V AC 50/60 Hz
  • 0.18 kW 400/415 V AC 50/60 Hz
  • 0.37 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2

4.GV2ME05 : Motor circuit breaker, TeSys Deca, 3P, 0.63 to 1A, thermal magnetic, screw clamp terminals, button control =2900

  • Complementary
  • Poles description : 3P
  • Network type : AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 0.25 kW 400/415 V AC 50/60 Hz
  • 0.55 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2

5.GV2ME06 : Motor circuit breaker, TeSys Deca, 3P, 1 to 1.6A, thermal magnetic, screw clamp terminals, button control = 2900

  • Complementary
  • Poles description :3P
  • Network type : AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 0.37 kW 400/415 V AC 50/60 Hz
  • 0.55 kW 400/415 V AC 50/60 Hz
  • 0.37 kW 500 V AC 50/60 Hz
  • 0.55 kW 500 V AC 50/60 Hz
  • 0.75 kW 500 V AC 50/60 Hz
  • 0.75 kW 690 V AC 50/60 Hz
  • 1.1 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2

6.GV2ME07 : Motor circuit breaker, TeSys Deca, 3P, 1.6 to 2.5A, thermal magnetic, screw clamp terminals, button control = 2900

  • Complementary
  • Poles description : 3P
  • Network type : AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 0.75 kW 400/415 V AC 50/60 Hz
  • 1.1 kW 500 V AC 50/60 Hz
  • 1.5 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

7.GV2ME08 : Motor circuit breaker, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, button control = 2900

  • Complementary
  • Poles description: 3P
  • Network type : AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 1.1 kW 400/415 V AC 50/60 Hz
  • 1.5 kW 400/415 V AC 50/60 Hz
  • 1.5 kW 500 V AC 50/60 Hz
  • 2.2 kW 500 V AC 50/60 Hz
  • 3 kW 690 V AC 50/60 Hz
  • 2.2 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

8.GV2ME10 : Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, button control = 2900

  • Complementary
  • Poles description : 3P
  • Network type: AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 2.2 kW 400/415 V AC 50/60 Hz
  • 3 kW 500 V AC 50/60 Hz
  • 4 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

9.GV2ME14 : Motor circuit breaker, TeSys Deca, 3P, 6 to 10A, thermal magnetic, screw clamp terminals, button control = 3100

  • Complementary
  • Poles description: 3P
  • Network type: AC
  • Network frequency: 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 3 kW 400/415 V AC 50/60 Hz
  • 4 kW 400/415 V AC 50/60 Hz
  • 4 kW 500 V AC 50/60 Hz
  • 5.5 kW 500 V AC 50/60 Hz
  • 5.5 kW 690 V AC 50/60 Hz
  • 7.5 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 15 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 10 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

10..GV2ME16 : Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, button control =3450

  • Complementary
  • Poles description : 3P
  • Network type: AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 5.5 kW 400/415 V AC 50/60 Hz
  • 7.5 kW 500 V AC 50/60 Hz
  • 9 kW 690 V AC 50/60 Hz
  • 11 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

11.GV2ME20 : Motor circuit breaker, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, button control =3450

  • Complementary
  • Poles description: 3P
  • Network type: AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 7.5 kW 400/415 V AC 50/60 Hz
  • 9 kW 500 V AC 50/60 Hz
  • 15 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

12.GV2ME21 : Motor circuit breaker, TeSys Deca, 3P, 17 to 23A, thermal magnetic, screw clamp terminals, button control = 4200

  • Complementary
  • Poles description: 3P
  • Network type: AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 9 kW 400/415 V AC 50/60 Hz
  • 11 kW 500 V AC 50/60 Hz
  • 18.5 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 6 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 4 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

13.GV2ME22 : Motor circuit breaker, TeSys Deca, 3P, 20 to 25A, thermal magnetic, screw clamp terminals, button control = 4200

  • Complementary
  • Poles description: 3P
  • Network type: AC
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 11 kW 400/415 V AC 50/60 Hz
  • 15 kW 500 V AC 50/60 Hz
  • Breaking capacity :
  • 50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 6 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 4 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

14.GV2ME32 : Motor circuit breaker, TeSys Deca, 3P, 24 to 32A, thermal magnetic, screw clamp terminals, button control = 4500

  • Complementary
  • Poles description: 3P
  • Network type: AC
  • Utilisation category
  • Network frequency : 50/60 Hz IEC 60947-4-1
  • Motor power kW :
  • 15 kW 400/415 V AC 50/60 Hz
  • 18.5 kW 500 V AC 50/60 Hz
  • 22 kW 690 V AC 50/60 Hz
  • Breaking capacity :
  • 50 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2
  • 10 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2
  • 6 kA Icu 440 V AC 50/60 Hz IEC 60947-2
  • 4 kA Icu 500 V AC 50/60 Hz IEC 60947-2
  • 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

ข้อมูลเพิ่มเติม

รุ่น GV2ME

GV2ME02, GV2ME03, GV2ME04, GV2ME05, GV2ME06, GV2ME07, GV2ME08, GV2ME10, GV2ME14, GV2ME16, GV2ME20, GV2ME21, GV2ME22, GV2ME32
